Frank-Wolfe algorithm for constrained convex optimization

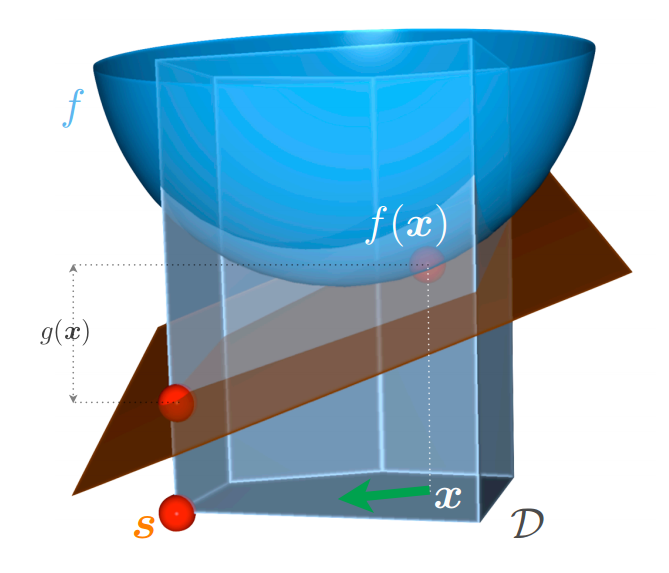

Image: Jaggi et al. 2013

Fabian Pedregosa, Parietal Meeting September 2013

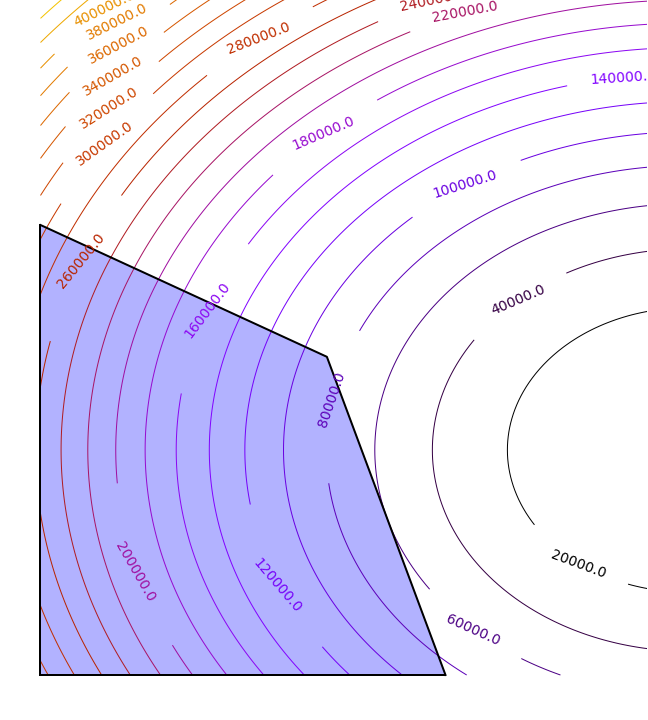

Context: Optimization problems of the form $$ \underset{x \in \mathcal{D}}{\operatorname{argmin}} f(x) $$ where $f$ is convex differentiable and the domain $\mathcal{D}$ is convex compact.


Applicable to problems such as

  • Lasso
  • Group Lasso
  • Trace norm
  • Total Variation

Belongs to the family of gradient-based (first order) methods as

  • Projected Gradient Descent
  • Proximal Methods

Algorithm

  • Let $x^{(0)} \in \mathcal{D}$
  • for $k = 0 ... K$ do
    • Compute $s = \underset{s' \in \mathcal{D}}{\operatorname{argmax}} \langle s', - \nabla f(x^{(k)}) \rangle$
    • Let $\gamma = \frac{2}{k+2}$ or optimize $\gamma$ by line-search
    • Update $x^{(k+1)} = (1 - \gamma) x^{(k)} + \gamma s$

< >

Complexity

[Wolfe 1956, Jaggi 2013] say $$f(x^{(k)}) - f(x^*) \leq \frac{2 C_f}{k + 2} = \mathcal{O}\left( \frac{1}{k} \right)$$

i.e. similar to (unaccelerated) proximal gradient algorithms

But running time it depends on how fast you can solve the subproblem $$s = \underset{s' \in \mathcal{D}}{\operatorname{argmax}} \langle s', - \nabla f(x^{(k)}) \rangle$$

which might be a hard problem ...

But for domains $\mathcal{D}$ that are convex envelope of another set $\mathcal{A}$, then $$ \underset{s' \in \mathcal{D}}{\operatorname{sup}} \langle s', y \rangle = \underset{s' \in \mathcal{A}}{\operatorname{sup}} \langle s', y \rangle $$

For example:

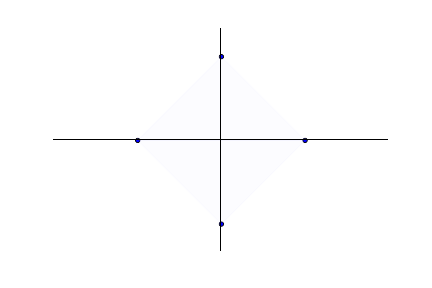

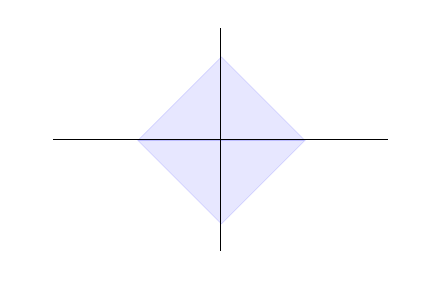

You optimize over the canonical vectors

You optimize over the set of rank-one matrices

(leading singular vector, solvable by Power or Lanczos iteration)

Approximately solving the subproblem

Approximately solve the subproblem $$ s = \underset{s' \in \mathcal{D}}{\operatorname{argmin}} \langle s', \nabla f(x^{(k)}) \rangle $$ Such that $ \langle s, \nabla f(x^{(k)}) \rangle \leq \underset{s' \in \mathcal{D}}{\operatorname{min}} \langle s, \nabla f(x^{(k)}) \rangle + \frac{1}{2} \delta C_f $

And you still get linear convergence $$f(x^{(k)}) - f(x^*) \leq \frac{2 C_f}{k + 2}\color{red}{(1 + \delta)}$$

On real data

Dataset: Kay 2008 (Natural Images)

Model: trace-norm penalized linear regression. $ \|y - X \text{vec}(B) \|^2 \text{ subject to } \|B\|_* \leq 1$

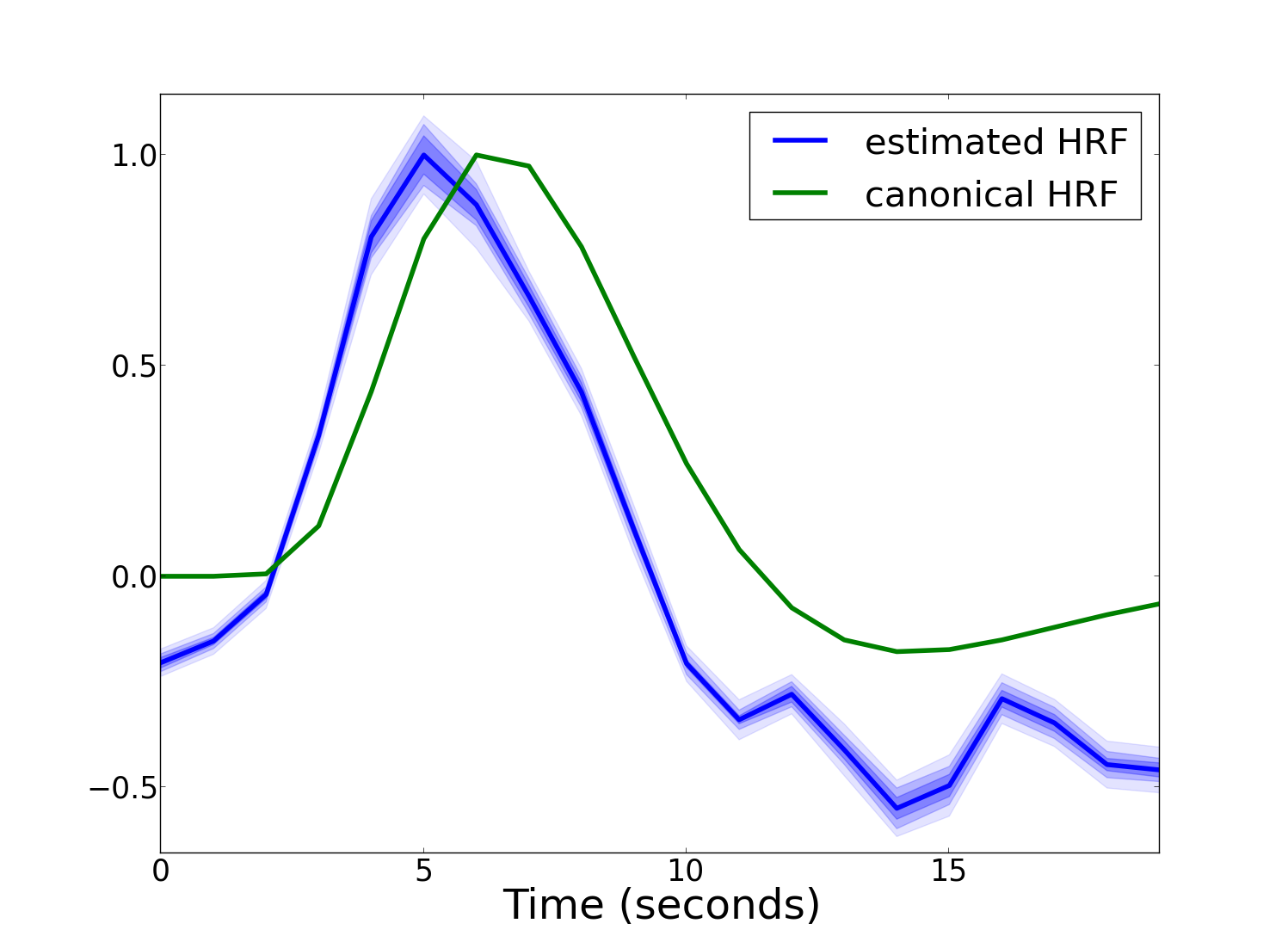

Convex Formulation

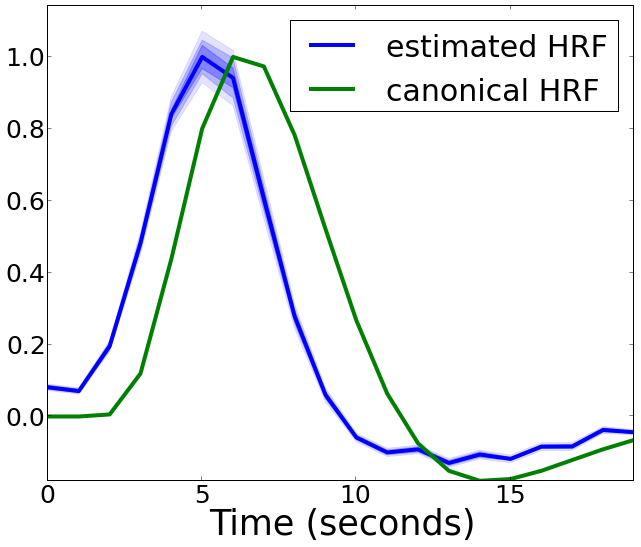

Non-Convex Formulation

References
